Large Capacity with Fine Output Size Crusher
Double Roller Crusher
-
11-30 KW
Power
-
5-100 t/h
Capacity
Large Capacity with Fine Output Size Crusher
Double Roller Crusher
11-30 KW
Power
5-100 t/h
Capacity
Description: Discover the advantages of our double roller crushers, ideal for producing uniform particle sizes with low fines. Perfect for processing brittle materials like coal, limestone, and clay, our crushers use two rotating rollers for efficient crushing with mi
Model: 2PG-400x250
Feeding size: ≤25mm
Capacity: 5-10 t/h
I. What is a Double roller crusher
A double roller crusher uses two rotating rollers to crush materials through compression. It's ideal for brittle materials, such as coal and limestone, producing uniform particle sizes with minimal fines. As the material passes between the rollers, it's compressed and broken down, making this crusher efficient for controlled, low-over-crushing applications.
sand making plant adopting a double roller crusher

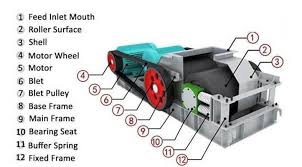

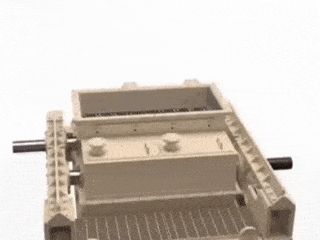

II. Double roller crusher working principle and strucure
A double roller crusher consists of two rotating cylinders (rollers) that crush material by compressing it between them. Material is fed between the rollers, which rotate inward toward each other. The compression breaks down the material into smaller particles. Its structure typically includes adjustable gaps for controlling output size, with rollers that can be smooth or toothed, depending on the application.

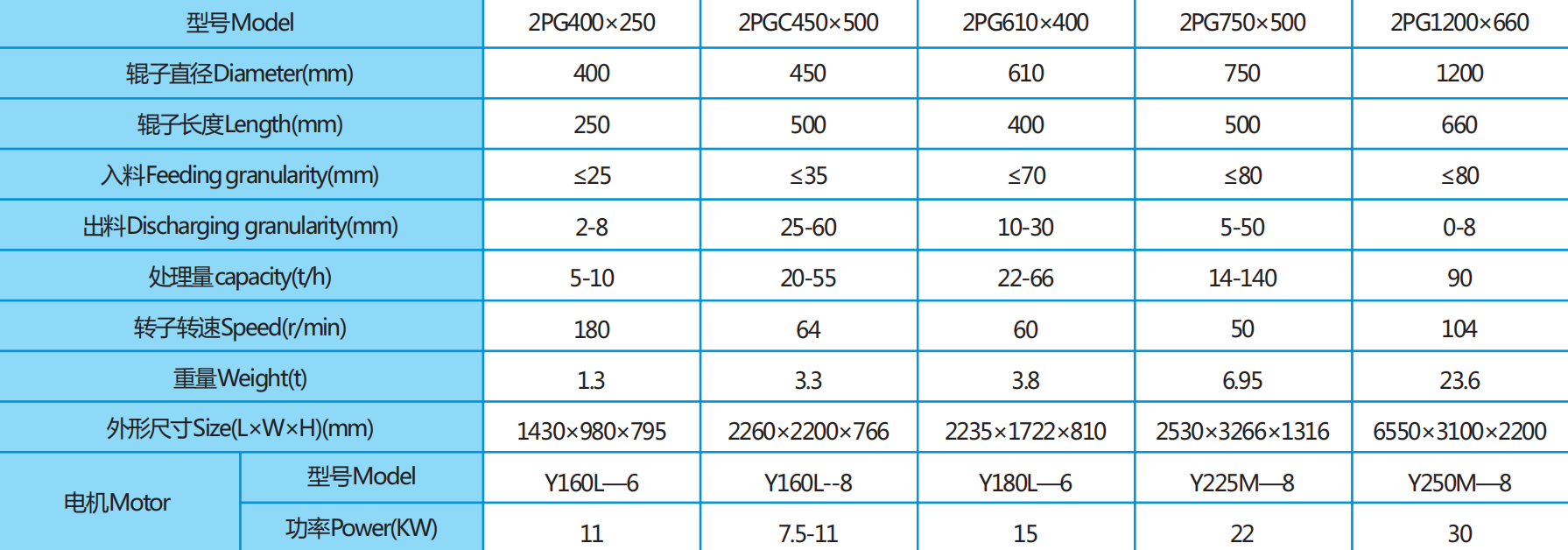

III. Double roller technical parameters
